Maximum Capacities

Milling (CNC)

  • 3-Axis Vertical Machining Center (20″ x 14″ x 18″)
  • 4-Axis Horizontal Machining Center (22″ x 22″ x 23.5″)
  • 5-Axis Vertical Machining Center (6″ x 6″ x 6″)
  • Part not to exceed 50 lbs; Ideal part not to exceed 30 lbs

Turning (CNC)

  • 2-Axis (Up to cap. of 15″ Dia. x 30″)
  • 6-Axis with bar feed (Cap. 2″ Dia. x 9″)
  • Part not to exceed 6″ Dia. and 50 lbs., Ideal part not to exceed 30 lbs
  • Tsugami
    • Tsugami B0325-lll
    • Tsugami B0326
  • Doosan
    • 3- Doosan 220LSY
    • 2- Doosan 2100LSYA

Milling/Turning (CNC)

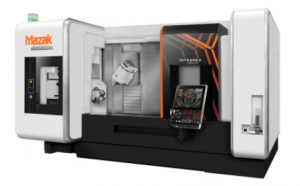

  • Mazak – Integrex i300-ST – 12″ chuck, 10″ sub spindle, travel between 60″ – 72 Tool Magazine

Horizontal Milling Systems

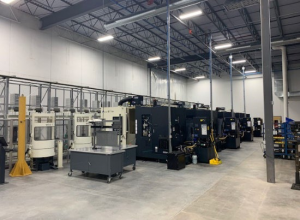

  1. Makino MMC Horizontal Machining System – 32 Pallet with MAS-A5 Software, comprised of:
    • 3- Makino A55E Horizontal Machining Centers – 20,000 RPM – 225 Tool Magazine, Inspection Probe
  1. Makino MMC Horizontal Machining System – 8 Pallet with MAS-A5 Software, comprised of:
    • Makino A51 Horizontal Machining Center – 14,000 RPM – 60 Tool Magazine, Inspection Probe
    • Makino A51 Horizontal Machining Center – 14,000 RPM – 134 Tool Magazine, Inspection Probe
  1. Makino MMC Horizontal Machining System – 16 Pallet with MAS-A5 Software, comprised of:
    • Makino A51NX Horizontal Machining Center – 14,000 RPM – 313 Tool Magazine, Inspection Probe
    • Makino A51NX Horizontal Machining Center – 14,000 RPM – 219 Tool Magazine, Inspection Probe
  1. Makino MMC Horizontal Machining System – 46 Pallet with MAS-A5 Software, comprised of:
    • 2- Makino A51NX Horizontal Machining Center – 14,000 RPM – 133 Tool Magazine, Inspection Probe
    • 2- Makino A51NX Horizontal Machining Center – 14,000 RPM – 218 Tool Magazine, Inspection Probe
  1. Makino MMC Horizontal Machining System – 44 Pallet with MAS-A5 Software, comprised of:
    • 4- Makino A61NX Horizontal Machining Center – 14,000 RPM – 218 Tool Magazine, Inspection Probe

Horizontal Milling

  1. Makino A51 Horizontal Machining Center – 14 Pallet – 18,000 RPM – 219 Tool Magazine, Inspection Probe, Data Server
  2. Makino A55 Horizontal Machining Center – 8 Pallet – 20,000 RPM – 128 Tool Magazine, Inspection Probe, Data Server
  3. Makino A55 Delta Horizontal Machining Center – 8 Pallet – 14,000 RPM – 128 Tool Magazine, Inspection Probe, Data Server
  4. Makino A55 Horizontal Machining Center – 8 Pallet – 20,000 RPM – 128 Tool Magazine, Data Server
  5. Matsuura MAM500 Horizontal Machining Center – 11 Pallet – 15,000 RPM – 210 Tool Magazine, Inspection Probe, Data Server
  6. Matsuura H Plus 300 Horizontal Machining Centers – 11 Pallet – 20,000 RPM – 240 Tool Magazine, Inspection Probe, Data Server
  7. Matsuura ES450 HII Horizontal Machining Center, 15,000 RPM, 60 Tool Magazine, Inspection Probe, Data Server
  8. Matsuura ES450 HII Horizontal Machining Center, 15,000 RPM, 60 Tool Magazine

Vertical Milling

  1. Okuma MV-460-VE Vertical Machining Center, 32 Tool Magazine
  2. Makino S33 Vertical Machining Center, 13,000 RPM, 30 Tool Magazine, Full 5th Axis Table, Inspection Probe, Data Server
  3. Matsuura MC800VG Vertical Machining Center, 10,000 RPM, 30 Tool Magazine, Full 5th Axis Table, Inspection Probe, Data Server
  4. Mori Seiki MV-40B Vertical Machining Center, 12,000 RPM Spindle, 5 Axis Indexer with Inspection Probe
  5. Matsuura MC-510VF Vertical Machining Center with Full 4th Axis
  6. Matsuura MC-510VF Vertical Machining Centers
  7. Matsuura MC-510V Vertical Machining Centers
  8. Matsuura MC-500V Vertical Machining Centers with 4th Axis
  9. Bridgeport Mills with Digital Readou

Turning

  1. Nakamura TW-20 Twin Spindle Multi-Axis CNC Lathe
  2. 2. Nakamura-Tome TMC-15 Lathes – 6″ Chuck
  3. Nakamura-Tome TMC-15M Multi-Axis CNC Lathe
  4. Nakamura Slant 1 CNC Lathe – 6″ Chuck
  5. 3. Mori Seiki CNC Lathes – 8″ Chuck Package
  6. Doosan LYNX 2100 LSY
  7. Hyundai Hit 30 S CNC Lathes – 12″ Chuck, 30 HP
  8. Hyundai Hit 8 S CNC Lathe – 6″ Chuck
  9. Citizen B20 CNC Swiss Screw Machine
  10. Hyundai Hit 8 GS Gang Tool CNC Lathes
  11. Hardinge CHNC I Computer Control Chuckers – 7 HP
  12. Hardinge CHNC II Computer Control Chuckers – 7 HP
  13. Hardinge Manual Chuckers
  14. Hardinge Tool-Room Lathe
  15. Hardinge Handscrews
  16. Speed Lathes

Deburring

  1. Burr Bench Vibratory Finisher
  2. Big Bench Vibratory Finisher
  3. Royson 35L Vibratory Finisher
  4. Roto Finish ST-1 Vibratory Finishers
  5. Graviflow GVM 300 Vibratory Finisher

CAD/CAM

  1. Surfcam 3-Axis Advanced
  2. Solid Edge Design / Draft
  3. Catia
  4. Solid Works
  5. Master Cam
  6. CMM Programming Software

Miscellaneous

  1. Harig Super 618 6″x18″ Automatic Surface Grinder
  2. Microline AC640-F
  3. Belmont Astec A33 EDM Hole Drill
  4. Micro Blaster
  5. Trinco Dry Blast Cabinet
  6. Kalamazoo Vertical Band Saw
  7. Behringer Automatic Production Band Saw
  8. Clausing Startrite Manual Horizontal Cutoff Saw
  9. Rotary Screw Compressors (50, 40 & 20 HP)
  10. Forward Technologies Aqueous Cleaning System
  11. ADF Pressure Wash System
  12. Crown Electric Forklift 2800 lbs. Capacity

Facilities

Jonaco Machine is housed in two state-of-the-art manufacturing facilities located in the Minneapolis suburbs of Chaska and Shakopee Minnesota.

Chaska Facility  –  47,500 square feet

Shakopee Facility  –  39,000 square feet
